- On your Desktop, create a new folder. Right-click anywhere you don't have an icon, go to 'New', and choose 'Folder'. Name the folder with the patient’s name
- Open your Romexis software, click on the Patients icon, and open the scan of the patient

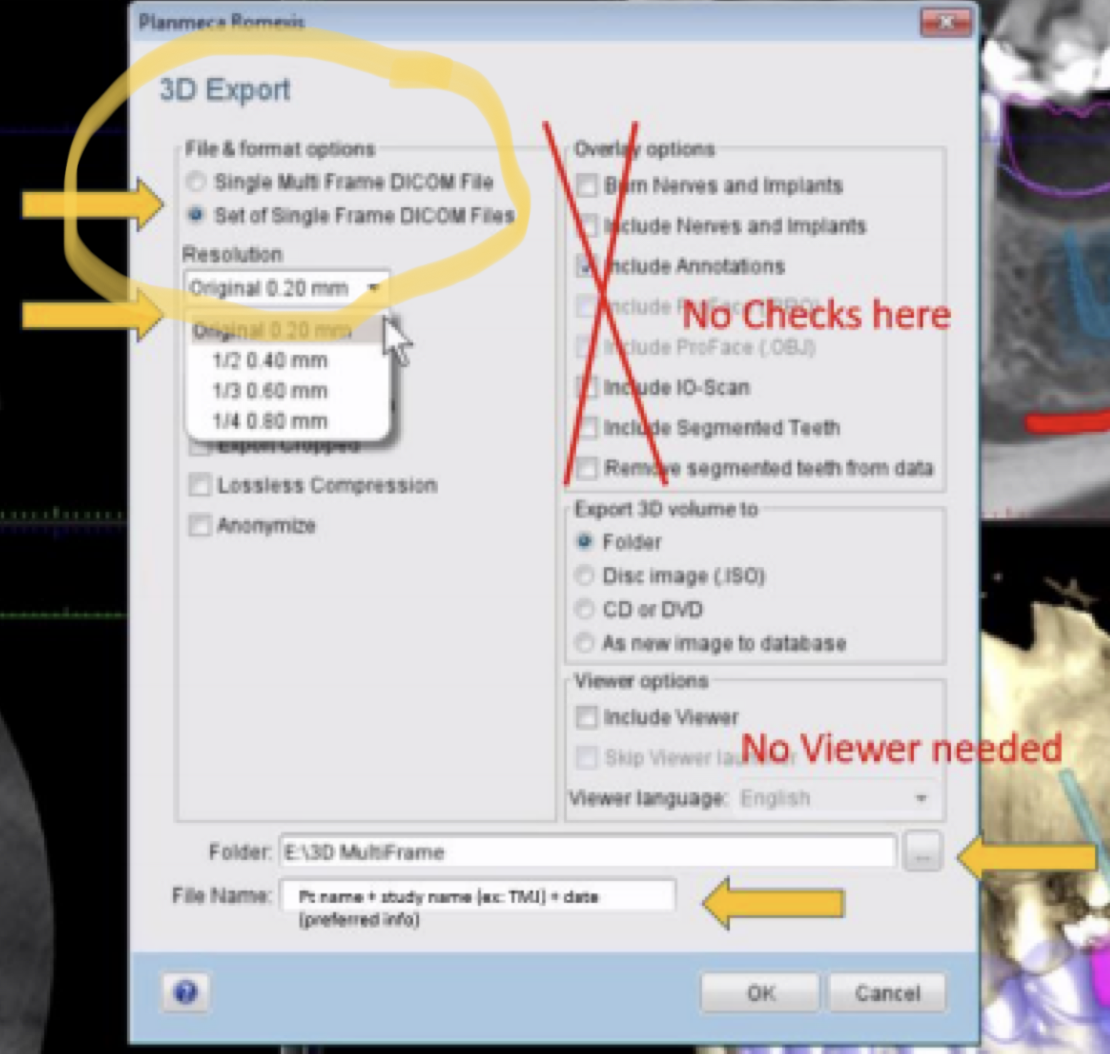

- Once the scan is on-screen, click the Output button on the top toolbar and select Export Volume. (Note: If you are using Romexis version 6, click the Export button on the top toolbar)
- Select the following settings:
- File & Format Options: Set of Single Frame DICOM Files
- Resolution: Original
- Make sure 'Anonymize' is not checked
- Overlay options: (NO CHECK MARKS)
- Export 3D Volume to: Folder
- Viewer Options: (NO CHECK MARKS. VIEWER IS NOT NEEDED)
- Folder field: Click the “…” box at the far right. Browse to and select the folder you created on your Desktop with the patient’s name on it.
- File Name field: We recommend entering the patient's first and last name. You can also include information about the type of scan it is (example: Mandible, Maxilla, TMJ/etc.)
- Select OK to export the DICOM files
-
Once the scan has finished saving, drag and drop the folder which was created on the desktop onto the case inside BeamReaders.
Note: If your account setup was prior to March 2023, you will need to "compress" the folder. Right click on the folder and send to compressed zipped. Prior to moving it to the BeamReaders case on page four.
Note to zip a folder: Right-click on the folder on your Desktop that has the patient's name on it, "Send to", and choose "Compressed (zipped) folder" or if you are on Windows 11 Right-click and compress to Zip File.
